트랜스듀서

2000 Series

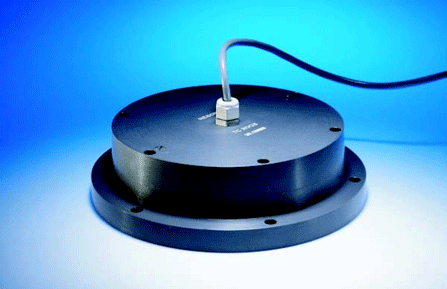

Transducer TC2003
Narrow Beam Hydrographic Transducer

- Narrow conical beam
- 높은 전력 (1500W) 사용
- 경량

주요사양

Resonant Frequency:200kHz ±10kHz
Transmitting sensitivity:180dB ±3dB at 200kHz (dB re μPa/V @ 1m)
Receiving sensitivity:-180 dB ±3dB at 200kHz (dB re V/μPa)
Impedance:100ohm ±30ohm
Beam width:3.0° ± 0.2, Conical
Max input power:1500W at 1% duty power
Operating depth:30m
Survival depth:50m
Operating temperature range:-2°C to +30°C
Storage temperature range:-30°C to +50°C
Weight with cable:7.1kg
Cable:18m FALMAT Type FM091003-1602A, 2x1 (Twisted pair) PUR Jacket, WATER BLOCK 2*1 (O.D. 9.3mm) - pigtail
