트랜스듀서

2000 Series

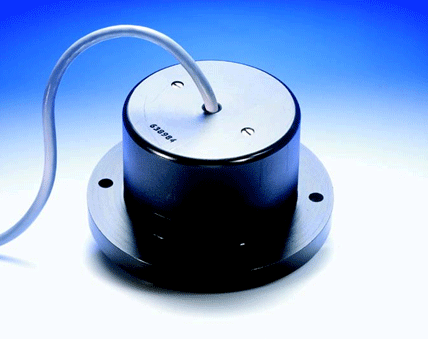

Transducer TC2024
Survey Transducer for Echosounder

- 200kHz
- 소형
- 고성능
- 견고한 압전 세라믹
- 대부분의 에코사운드 시스템과 전기적 호환

주요사양

Resonant Frequency:200kHz ±10kHz
Transmitting sensitivity:173dB ±3dB re 1μPa/V at 1m
Receiving sensitivity:-187dB ±3dB re 1V/μPa
Impedance:100ohm ± 30ohm at 200kHz
Beam width:9.5° ± 1°, Conical
Max input power: 450W at 1% duty cycle
Operating depth:30m
Survival depth:50m
Operating temperature range:-2°C to +30°C
Storage temperature range:-30°C to +50°C
Housing:PVC
Weight (air) incl. Cable:2.3kg
Cable: 20m FALMAT Type FM091003-1602A, 2x1 (Twisted pair) PUR Jacket, WATER BLOCK 2*1 (O.D. 9.3mm) - pigtail
