트랜스듀서

2000 Series

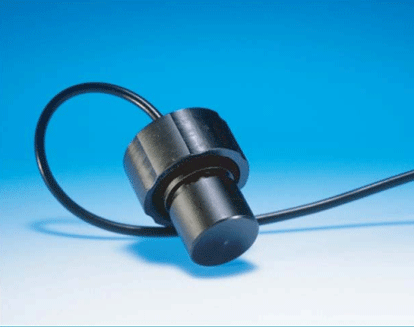

Transducer TC2111
Survey Transducer for Echosounder

- 초소형
- 견고한 압전 세라믹

주요사양

Resonant Frequency:200kHz ± 3kHz
Transmitting sensitivity:163dB ± 3dB (re 1μPa/V at 1m)
Receiving sensitivity:-190dB ± 3dB (re 1V/μPa)
Impedance:200ohm ±60ohm at 200kHz
Beam width:18° ± 3°
Beam shape:Conical
Max input power:50W (at 1% duty cycle)
Operating depth:30m
Survival depth:50m
Operating temperature range:+2°C to +35°C
Storage temperature range:-30°C to +50°C
Cable:10m Coax 2*1 (O.D. 5mm) - pigtail
Weight in air, with cable:0.4kg
Housing:PVC with union nut
