트랜스듀서

3000 Series

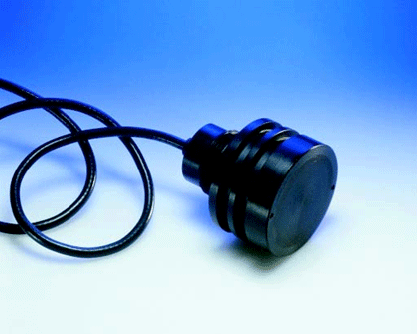

Transducer TC3021
Low Cost Universal 2MHz Transducer

- 700m 깊이까지 사용
- Extreme narrow beam width

주요사양

Resonant Frequency:2MHz
Transmitting sensitivity:184dB ±3dB at 2MHz (re μPa/V at 1m)
Receiving sensitivity:-207dB ±3dB at 2MHz (re V/μPa)
Impedance:23ohm ±11ohm at 2MHz
Phase:0° ±30°at 2MHz
Beam width:2.2°
Beam shape:Conical
Side lobe SuppressionBetter than -12dB
Max input power:5W (1% duty cycle)
Operating depth:700m
Survival depth:1000m
Operating temperature range:+2°C to +35°C
Storage temperature range:-30°C to +50°C
Weight (air) incl. cable:35g
Housing:PVC ? black
Cable: (Length and type)1.5m, Coax cable RG 174/u
