트랜스듀서

3000 Series

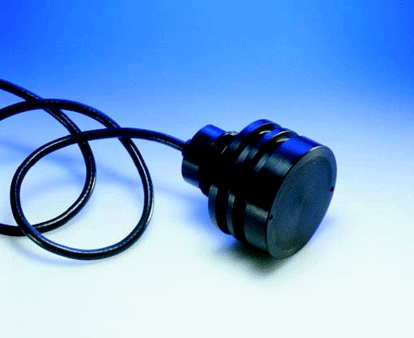

Transducer TC3027
Universal 1MHz Transducer

- 초소형 하우징
- Side lobe suppression better than -23dB
- 2개의 O-ring 으로 방수

주요사양

Resonant Frequency:1MHz
Transmitting sensitivity:170dB ±3dB at 1MHz (re 1μPa/V at 1m)
Receiving sensitivity:-201B ±3dB at 1MHz (re 1V/μPa)
Impedance:140ohm ±30 % at 1MHz
Directivity Pattern:5.8°
Beam shape:Conical
Side lobe SuppressionBetter than -23dB
Max input power:10W
Operating depth:500m
Survival depth:800m
Operating temperature range:-2°C to +50°C
Storage temperature range:-30°C to +50°C
Weight (air) incl. cable:40g
Housing:PVC - black
Cable: (Length and type)1.5m coax cable RG174/u, pigtail
