트랜스듀서
1000 Series

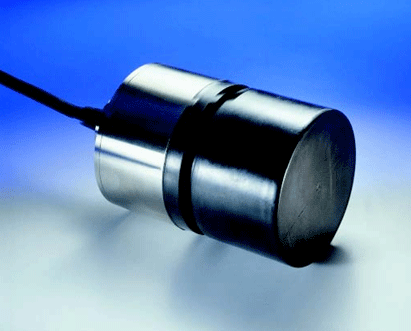

Transducer TC1037
Directional Telephone Transducer
1000 Series
Transducer TC1037
Directional Telephone Transducer
Resonant Frequency: | 6kHz to 15kHz |
Transmitting sensitivity: | 145dB ±3dB at 7,3kHz (re μPa/V at 1m) |
Receiving sensitivity: | -169dB ±3dB at 7,3kHz (re 1V/μPa) |
Impedance: | 860ohm ±250ohm at 7,3kHz |
Beam shape: | Conical |
Beam width: | 80°at 8kHz |
Max input power: | 400W (1% duty cycle) |
Operating depth: | 600m |
Survival depth: | 800m |
Operating temperature range: | -2°C to +35°C |
Storage temperature range: | -40°C to +70°C |
Cable (Optional) | Connector and 9m cable, pigtail |
Housing: | Special formulated NBR |
Weight (air) incl. cable: | 5.8kg |
