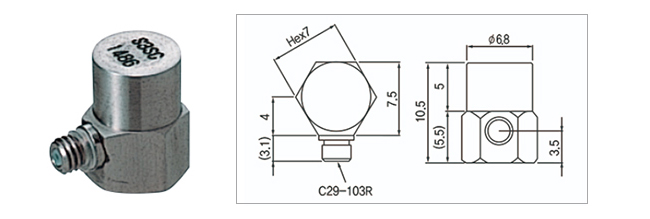

전하 출력형- 소형 가속도 센서 S3SC
제품 사양
| Charge Sensitivity(pC/g) | 3 | |
| Resonant Frequency(kHz) | ≧60 | |
| Frequency Response #1 |
Hz±1dB | fc~15,000 |
| Hz±3dB | fc~20,000 | |
| Measurement range(±g) | 5,000 | |
| Shock Limit(±g) | 10,000 | |
| Temperature Range(℃) | -20~+150 | |
| Capacitance(pF) | 900 | |
| Insulation Resistance(MΩ) | ≧10,000 | |
| Transverse Sensitivity(%) | ≦5 | |
| Thermal Transient Sensitivity(g/℃) | - | |
| Base Strain Sensitivity(g/μ) | - | |
| Grounding | Case | |
| Sensing Geometry | Shear | |
| Weight(gm) | 2 | |
| Case Material | Titanium | |
| Connector | C29-103R(M3) | |
| Mounting Thread | Female (M3•D=1.6) | |
| Accessories Included | Mtg stud(M3×0.5×5) | |
| Optional Cable |  |
|
| Mounting Adapter | ① ⑦ ⑬  |
|
