진동 센서
▶ 1축 가속도 센서
전하 출력형 가속도 센서

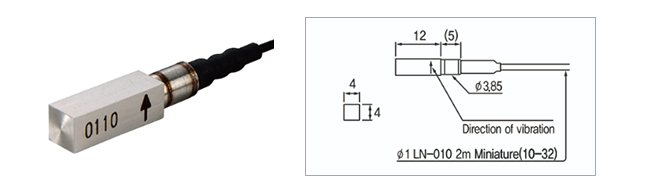

전하 출력형- 소형 가속도 센서 BW21SG2
제품 사양
| Charge Sensitivity(pC/g) | 18.4 | |
| Resonant Frequency(kHz) | 5 | |
| Frequency Response #1 |
Hz±1dB | fc~1,300 |
| Hz±3dB | fc~2,000 | |
| Measurement range(±g) | 500 | |
| Shock Limit(±g) | 1,000 | |
| Temperature Range(℃) | -20~+120 | |
| Capacitance(pF) | 1,800 | |
| Insulation Resistance(MΩ) | ≧10,000 | |
| Transverse Sensitivity(%) | ≦5 | |
| Thermal Transient Sensitivity(g/℃) | 0.19 | |
| Base Strain Sensitivity(g/μ) | 0.003 | |
| Grounding | Case | |
| Sensing Geometry | Bending | |
| Weight(gm) | 1.5 | |
| Case Material | Stainless steel | |
| Connector | LN-010(2m) Miniature | |
| Mounting Thread | (adhesive) | |
| Accessories Included | - | |
| Optional Cable |  |
|
| Mounting Adapter | - | |
