Monitoring and Diagnosis System

Furnace Gas Temperature Monitoring System

• Real-time Monitoring system for temperature distribution to optimize the combustion state of furnace.
• It monitor the maximum and average value to avoid the slagging by convection of heat exchange.
• SNCR(Selective Non-Catalytic Reduction) control
• When measured temperature is below the minimal temperature, An alarm occurs.
• Due to the Occurrence the local combustion, it can control the combustion when accrue the slagging of
      heat exchanger and heat stress.

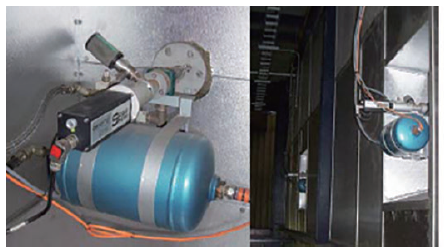

• It can install the 6 to 12 of pyrometer around furnace.
• It can provide function for alarm, thermal image, visualization and DAQ to calculate the data.
• It can access miniature(15~40mm) and few air consumption as well(approx. 2m3/ hr per Sensor).
• It can measure and control without time delay.
