  • Dynamic Character analysis system for Rotor
    RS-600
  • One and two plane balancing analysis of a rotor
  • Real-time waveform display and RPM measurement
  • Unbalance mass calculation on the rotor shape
  • Orbit Analysis based on orbit and polar plot
  • Balancing analysis on the standard, ISO 1940
  • Critical speed analysis by campbell plot
  • Rotor fault analysis using characteristic frequency detection
  • Oder tracking analysis for rotation body
  • Reporting and printing screen

Products Information

RS-600 is a program for field balancing for large plant or rotating machinery. Exact one-plane or two-plane balancing analysis can beperformed by means of the influence coefficient method. User can calculate and print the permissible residual unbalance for each rotationalbody's shape and balancing quality based on ISO 1940. This program supports polar plot and time-series data display for residual unbalanceand corrective mass. Also it supports critical speed analysis and fault analysis through order tracking analysis.

Feature and composition

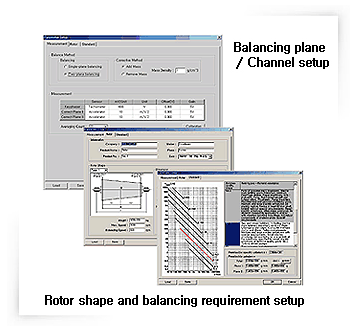

Parameter setup

■ One or two plane balancing support.
■ Corrective mass : add or remove
■ H/W setup : sampling frequency, input voltage
    range, etc.
■ Sensor calibration
■ One channel for keyphasor input
■ Two channels for accelerometers input
■ Balancing quality setup based on ISO 1940
■ Residual unbalance calculation on rotor shape,
    and corrective plane setup.

Balancing analysis

■ Digital display for rotational speed
■ Polar plot for corrective position and unbalance
    position display
■ Time-series display for input signal
■ Unbalance, corrective mass, balancing result
    display per every step.
■ Order tacking analysis
■ Waterfall, color-map, Campbell plot
■ Order spectrum, nyquist plot
■ Orbit, polar plot
■ Building database for specific frequency of
    a rotational body's component
■ Harmonic, side band analysis
■ Reporting function
