Monitoring and Diagnosis System

Temperature Monitoring System

- Multi-channel of temperature monitoring system on real time
- Compact size, low price by installed, easy using
- Support to Text file, Trend
- Indicate to conditions(alarm&caution) by each channel on real time
- On real time monitoring for main factor by the machine train diagram
- Indicate to Trend on real time
- Possible to expend on user group
- Supply to user's UI
- Support to Burn Out
- Support to temperature type of K,J,T,E,N,R,S,B

Products Information

TMS(Temperature Monitoring System) is monitoring system of multi-channels on real time. It is possible to install compact size without a indicator as low price for system of high precision for accumulate of temperature data under 100 channels, as well as over 1000 channels.
TMS is possible to make fixable or portable type by requirement of customer(user).
TMS is possible to operate without server less(S/W) by internal processer, so then it can operate to self administered "alarm, trip, output to relay, data save & command " by set up condition with difficult for network connection and installed computer in industry site.
Accumulated data can save to internal memory card in the coming months until the years by set up condition, and back-up to usb.
By using S/W for connect of network(TCP/IP) is possible to remote on-line monitoring in distant place on real time.

Feature and composition

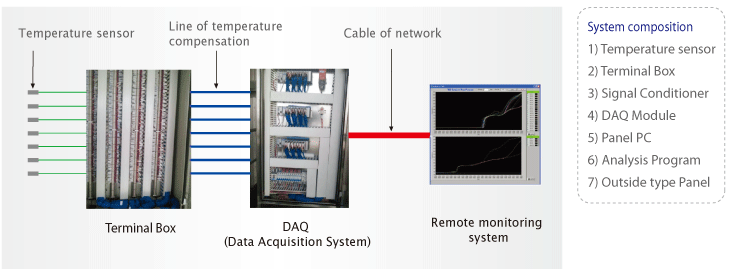

Block Diagram

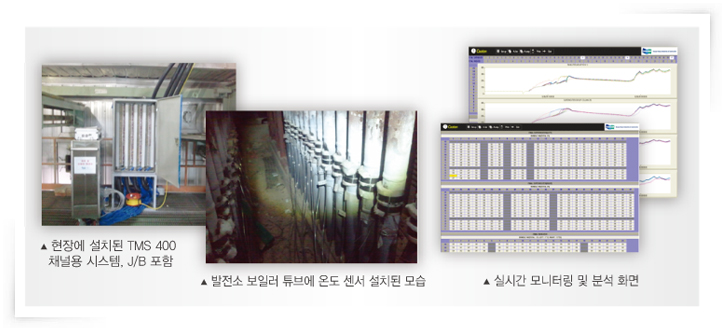

Temperature Monitoring System(TMS) of Boiler, temperature signals received in real time through a temperature sensor installed on the tube, the system is to evaluate the soundness of the tube.
16 per channel 1Slot temperature instrumentation, supported, and the maximum number of channels varies depending on the system specifications.(current 1,3000ch embody)
