Acoustic Emission System

Real-time Acoustic Emission analysis system AE-300

  • - Support real time AE features
  • - Various display such as cumulation, distribution, trend of AE feature
  • - Management of threshold and data acquisition using Level, Pre-trigger
  • - Various monitoring such as system leakage, crack, AE origination
  • - Source location and editor of signal occurrence log
  • - Monitoring of preamplifier working status
  • - Auto reporting function through windows configuration
  • - Export function to support analysis result

Products Information

AE-300 is analysis software that store high frequency range Acoustic Emission (AE, elastic wave energy) signal generated deformation or destruction from any material. In order to store high frequency signal, it monitor and store the signal over the threshold level and can verify that various result of distribution, trend, cumulation, correlation for AE Hit through Overlay function. Time data that detected from a material is verified periodic characteristic using frequency analysis.

AE-300 are provide basic configuration such as AE occurrence and system condition to easily setup for acquisition environment, various application condition for a system crack, leakage, and recording and edition tool to reduce external signal factor. In addition, it is included status monitoring of the preamplifier. AE-300 can simultaneously store Raw and AE feature signal, and then it can easily convert txt, csv file. Also, it support file management as a list structure, reporting tool.


Feature and composition

Measurement condition
Channel setupSampling FrequencyIt depend on data acquisition device.
Recording length It display the number of data for raw data with 2048, 4096, 8192 size.
Amplification ratioSetup for preamplifiers amplification as 0/20/40dB.
AE setupThresholdTo determine of AE signal threshold level, pre-trigger level, threshold type.
AE limitation To avoid destruction of test object, it will stop experimental test If test load is unexpectedly increased.
AE filterUsing AE filter, it can manage various data.
AE analysisIn order to measure precious AE signal, AE timing parameter is setup as a micro-sec unit.
Other setupExternal signal setupExternal signal level setup related AE system, scaling control, data management.
System monitorIn case of data recording, it check system status of memory, CPU load, residual Hard Disk, etc.
Signal monitorSupport various monitoring environment such as AE feature, frequency characteristic, leakage, crack, etc.
Preamplifier Monitor Check the status of preamplifier.
Audio setupHearing environment setup of AE signal from the field side.

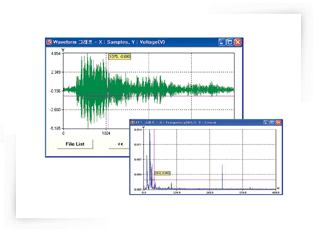

Time graph




  Time graph provide the condition of attenuation and characteristics of frequency using Raw data as a Voltage Unit when AE Hit is started from any material or structure. Using FFT analysis window, user can easily analyze characteristics of frequency.

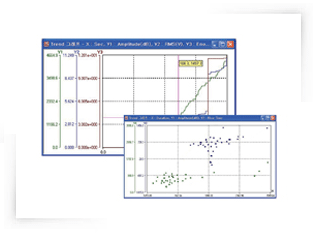

AE analysis graph

  AE Analysis graph provide various analysis with a signal measurement parameters. The X-axis shows time, and Y-axis shows 3 kinds of parameter, which is checked as user defined values like amplitude, RMS, Energy with a different color. If the AE Hit is generated continuously, it display average, min, max, etc.


Basic featuresAmplitudeHitRMS
DurationRising TimeEnergy
CountRising CountEnergy Count
Combination featuresAverage FrequencyReverberation FrequencyInitiation Frequency
Frequency featuresFrequency CentroidPeak FrequencyPartial Power
Application System

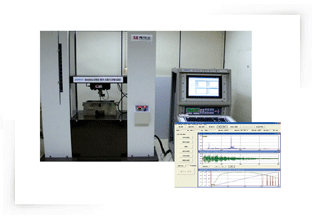

< Evaluation system of Bending >

Bending Test machine is to provide various analysis technique such as load, temperature, AE features during loading time with a test material.

< Acoustic Leakage Monitoring System >

ALMS is to provide crack and leakage information for pipe of the power plant.
