  • Post-processing system for
    Acquired data calculation & analysis
    RS-400
  • - Graphic display and frequency analysis of multi-channel and
      large capacity data
  • - Data calculator and editor on spreadsheets
  • - Frequency analysis of acquired time series data through
      FFT, FRF or COH
  • - Octave filter (1/1, 1/3 Octave) analysis
  • - Replaying recorded data as a sounds. Digital filtering
  • - Various data file import
      : ASCII, Wave, Matlab, SDF, Universal file, etc.
  • - Data file export - MS Word, Excel
  • - Reporting, and printing screen

Products Information

RS-400 is software to analyze and display all measured data, let alone the stored data in a DAQ device or a recorder. It can display Wave, Text, Excel, Matlab and other various formats besides binary as spreadsheets or graphs and execute frequency analysis such as FFT and octave.
In its dynamic mode, you can replay simultaneously multi-channel time-series data through graphs and hear their sounds for selected channels through a sound card. You can also execute FFT or Octave of FRF analysis and save these data as a file. To make a report or a print, it allows you to edit and save the spreadsheets and graphs, and supports conversion into various file formats.

Feature and composition

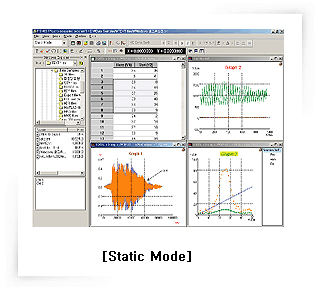

Static Mode
Spread sheet Graph
Data calculation on columns and rowsSupports 2-D, 3-D Graph
OLE Support in ExcelSave as image file -jpg, bmp, tif
Insert, delete and edit data on rows and columns Zoom In, Zoom Out
Supports various types of data -DADiSP, Text, Excel, Universal file,Matlab, Wave file
Loading data just by Drag-and-Drop on Explorer
Edit function for font, color and size for a report & a print
Import/Export data for multi-channel and large capacity
Print, Print preview, Save as an image and Excel file.

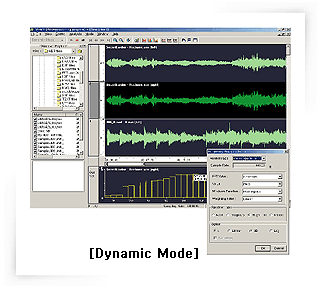

Dynamic Mode
List Descriptions
File formatTime series data (Regardless of their formats)
Sampling rateAble to replay as sounds regardless of its sampling rate.
For data with low sampling rate, there is a Re-sampling setup.
Analysis and DisplaySupports display of time-series data over 64 channels
FFT, Cross spectrum, FRF, COH analysis
Octave filter analysis(1/1, 1/3 Octave)
Weighting filter(A-, B-, C-weighting)
Window function (Hanning, etc.)
Able to save an averaged frequency analysis data for selected area.
